LARA 3D
WIRECAM SYSTEMS

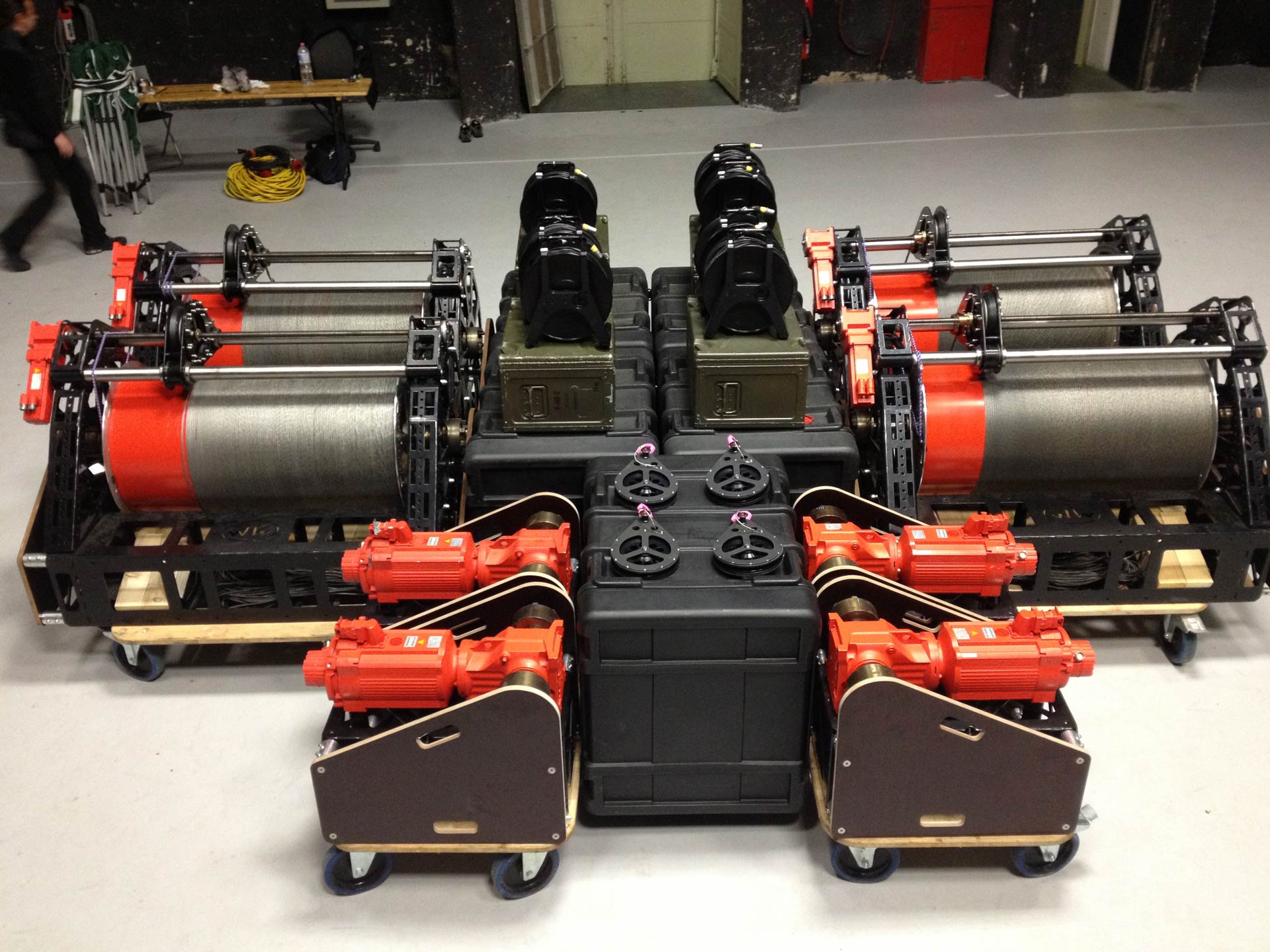

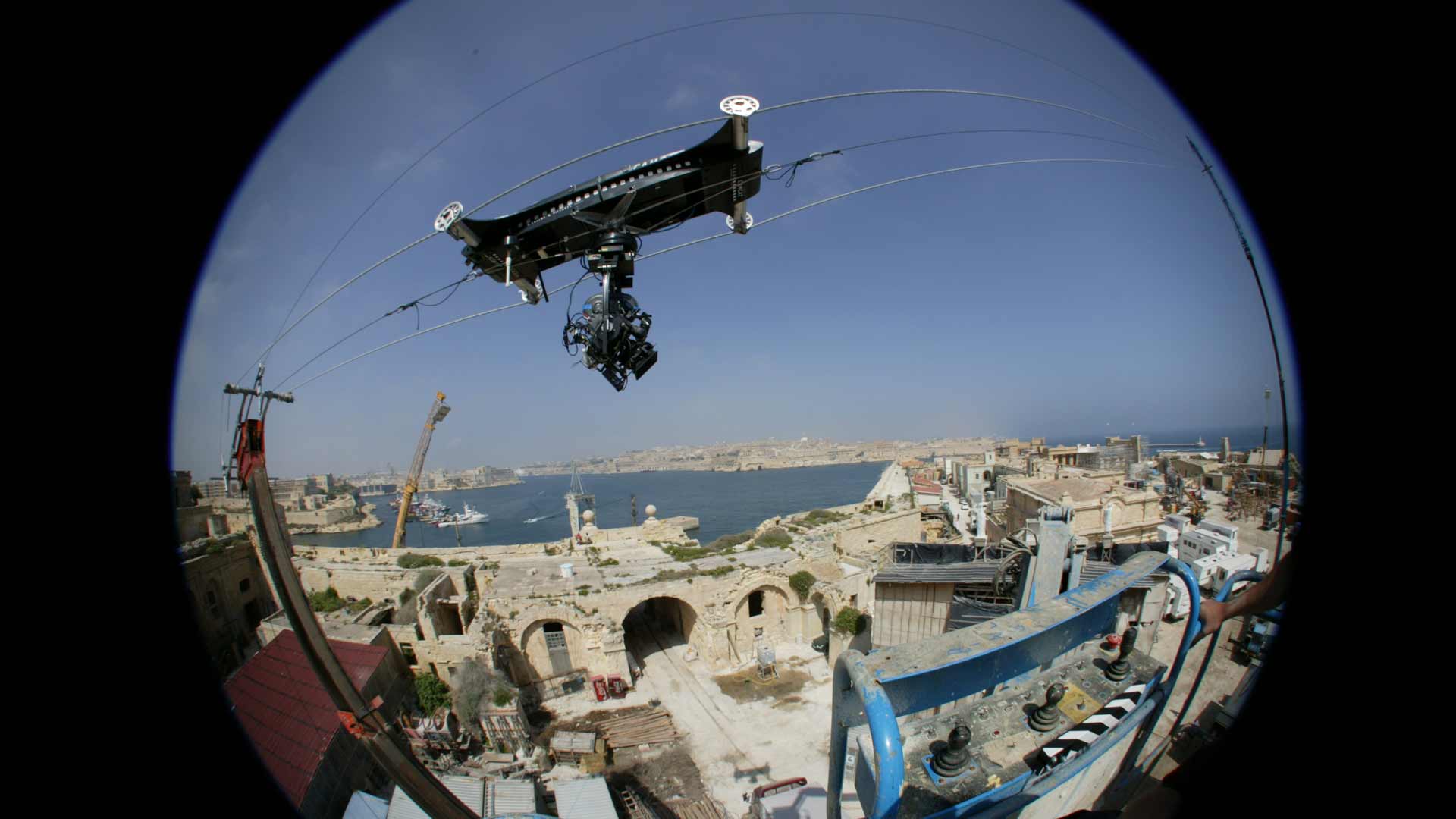

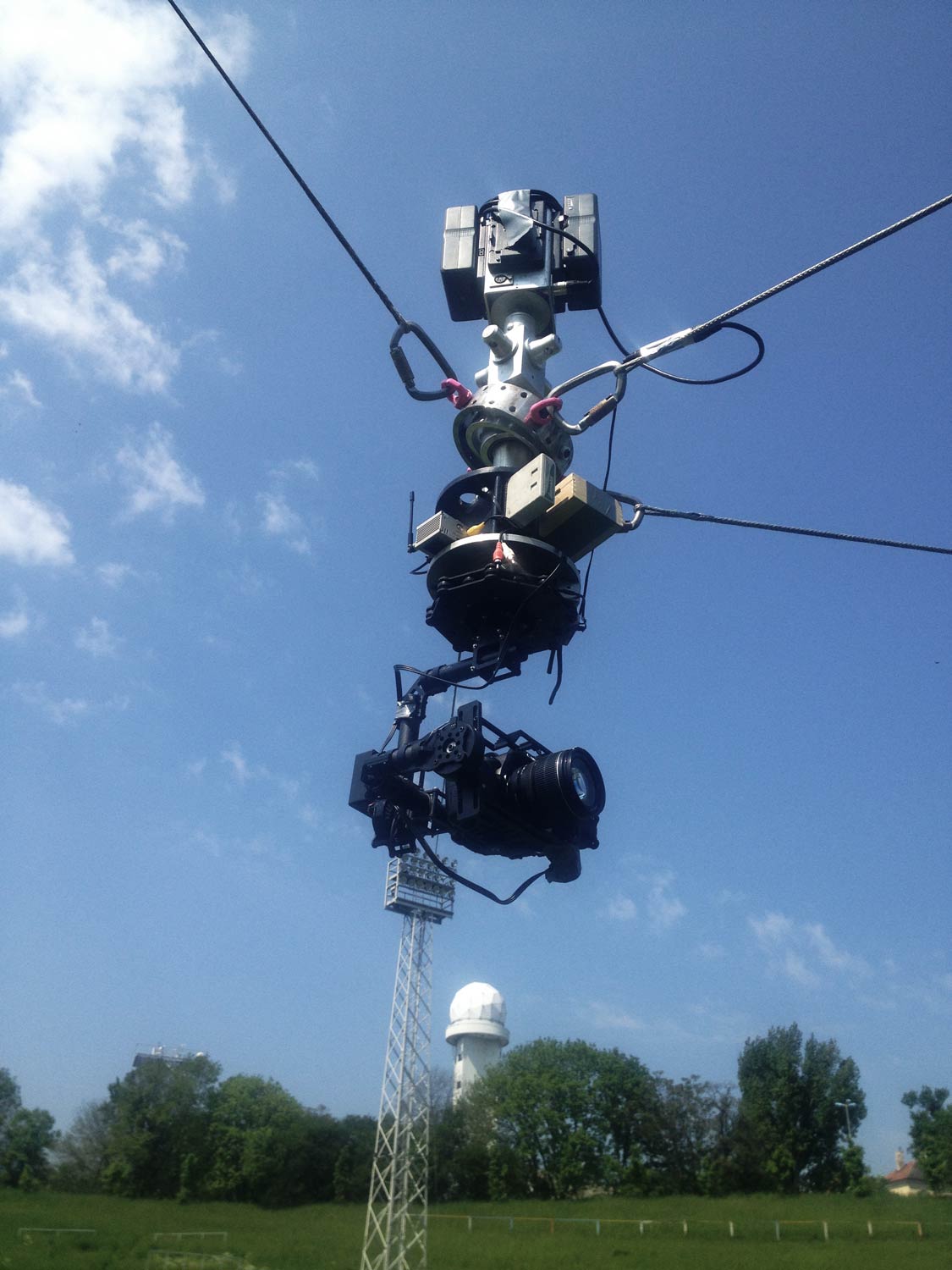

LARA 3D is a modular, wire-guided camera system.
Lara 3D winches are suitable for:

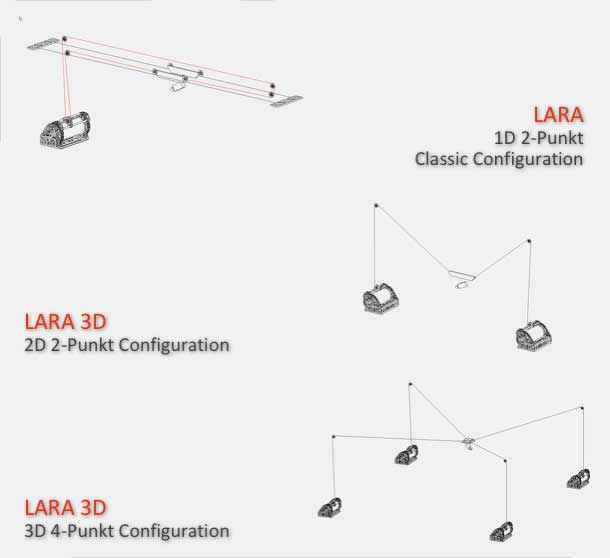

• 2-point linear movements (1-2 winches)
• 2-point camera-movements including height changes (2-3 winches)

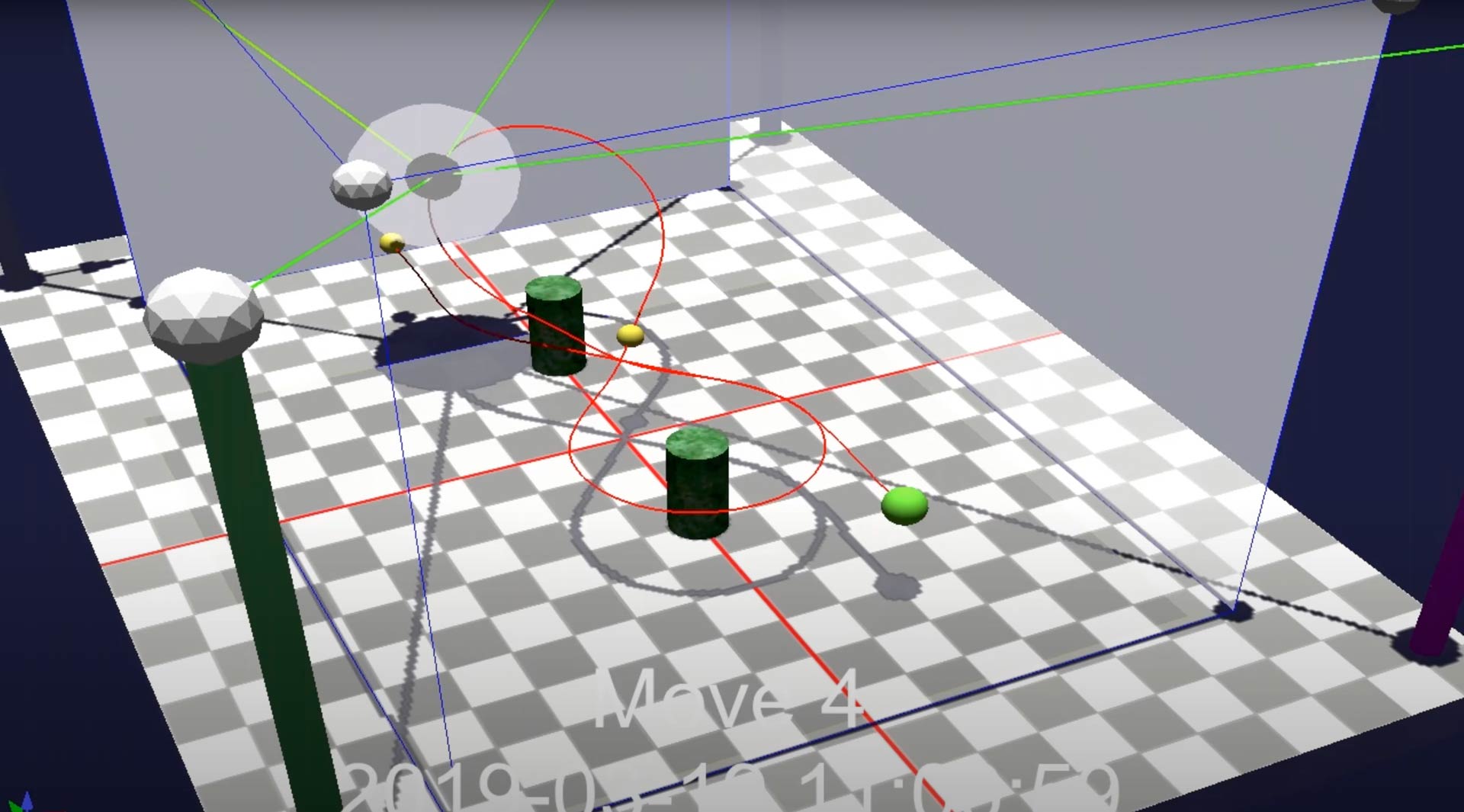

• complex movements in 3D-space (up to 4 winches)
LARA 3D winches meet all the requirements, for both long distance applications and narrow spaces.
Due to their modularity LARA 3D winches function like building blocks that can be fitted to the most diverse specifications.
LARA 3D - Facts
The construction of a LARA 3D winch allows using it as a classical roll-on/roll-off winch with a driving unit for configurations comprising of load-bearing cables and revolving drive lines. Depending on the on-set requirements, the performance of the system can be tuned to suit the weight of the flight-segment plus camera (up to 100 kg). Max speed of the system can be tuned up to 16m/s. The LARA 3D System is TÜV certified to handle both camera applications as well as stunt applications to fly performers or actors.
LARA 3D - KEYFACTS
- Payload: 100KG
- Speed: 16m/s
- Accel.: 5m/s(square)
- Max Pulling Force: of one winch 3000N
- Max Flight Space: 150m x 150m x 50m
